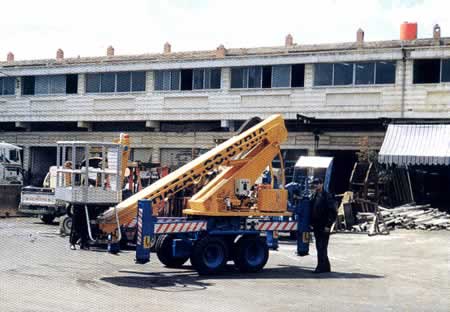

Multi Purpose Basket lift Hydraulic |
Power engine : The basket lift works with two
engines . The first one is diesel engine for working and moving in the
open area , and the second one is electrical engine (220V – 3 horses)
for working and moving in the close area (custom-need) .
Walk properties : The basket lift is walking with
two hydraulic circuit walk , and with four wheels are round in difficult
angles , so the speed walking are 5 Km / hour , and it's designed for
walking in rough and high land , in going up and down , and it's driven
by the worker on foot behind it left foot
|
 |

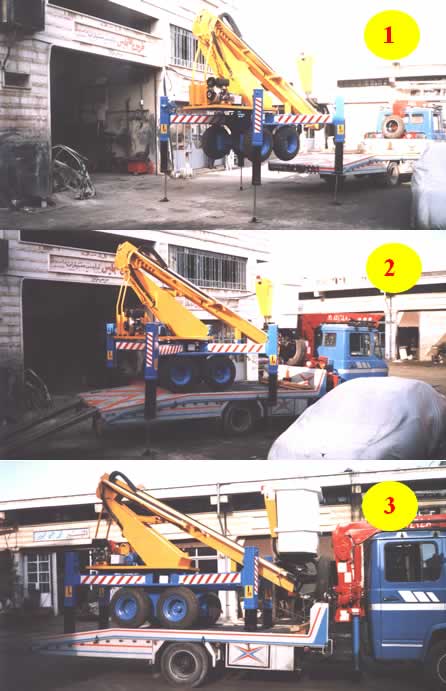

| Basket lift moving : it's designed for elevate
itself with four extra hydraulic press for elevate the basket lift up to 110
CM on pick up car. |
 |
Land fixing: by 4 hydraulic compressors
fixed on the basket lift body.
Height: 12, 18 or 23 meter, the basket
height from the ground with a hydraulic control board allow the worker
to control the height . |
 |
Safety: it's supplied with a safety
electrical hydraulic switch from the wrong use under any working
conditions.
Basket lift job: 400 kg weigh available carry up
aluminum, and fiber glass covered basket for all usage kinds. |
|
Protect Innovation No. 5317 |
